C-ZRS-A

C-ZRS-A

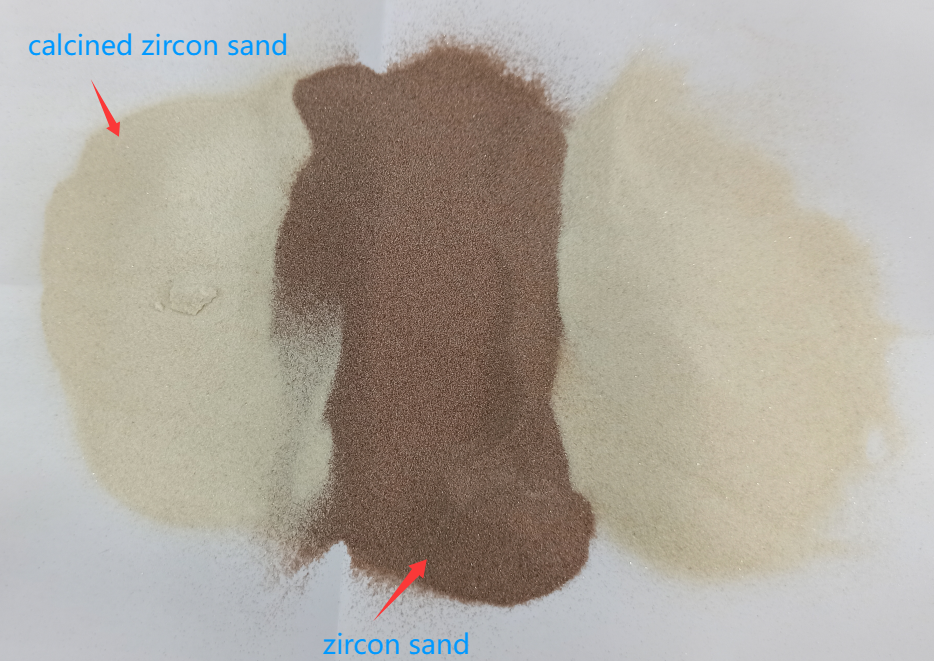

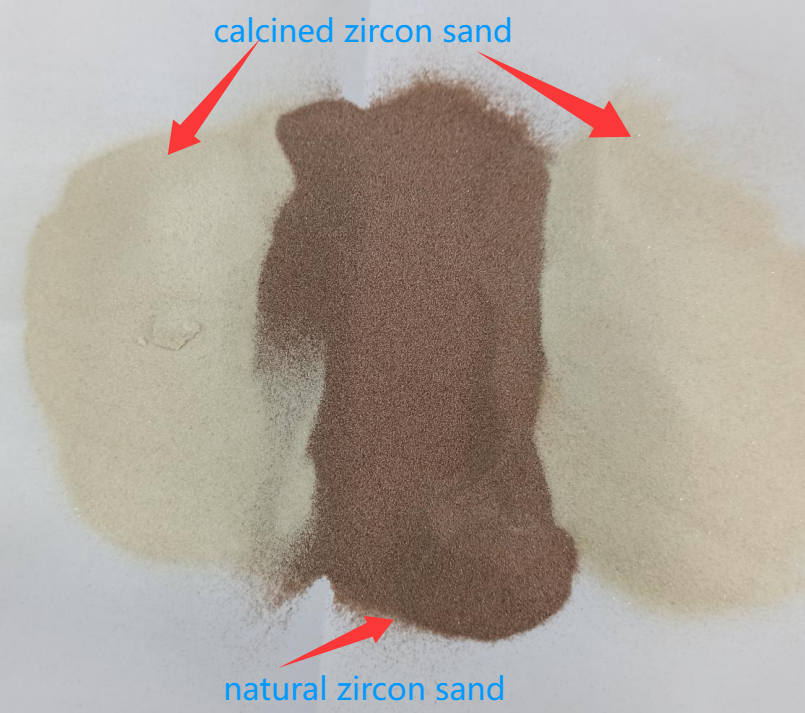

Both calcined zircon sand and calcined zircon powder are natural zircon sand clinker imported from Australia and subjected to high-temperature calcination. After being held at a temperature above 1300 degrees for more than 12 hours, low-melting-point alkaline oxides such as Na and K, as well as organic matter, are ablated. This results in more stable physical and chemical properties, better refractoriness, and an extremely low thermal expansion coefficient. The presence of free SiO2 improves the creep resistance of the coating at high temperatures, while the rounded particles enhance the permeability of the coating, reducing the rate of sand adhesion defects and improving the surface finish of investment casting parts.

0.00
0.00


Both calcined zircon sand and calcined zircon powder are natural zircon sand clinker imported from Australia and subjected to high-temperature calcination. After being held at a temperature above 1300 degrees for more than 12 hours, low-melting-point alkaline oxides such as Na and K, as well as organic matter, are ablated. This results in more stable physical and chemical properties, better refractoriness, and an extremely low thermal expansion coefficient. The presence of free SiO2 improves the creep resistance of the coating at high temperatures, while the rounded particles enhance the permeability of the coating, reducing the rate of sand adhesion defects and improving the surface finish of investment casting parts.

Item No.: C-ZRS-A



Chemical Specifications



Item Content(%)
ZrO2+HfO2
66.0 min
Fe2O30.08 max
TiO2
0.15 max



Particle Size Distribution



ItemContent
Calcined zircon sand

80 ~ 120 mesh

100 ~ 200 mesh

Calcined zircon flour

200 mesh,

270 mesh,

325mesh



Packing Specification



25kg Net with three-layer paper bags.

2-ton polypropylene woven bag lined with polyethylene film/wooden pallet.
