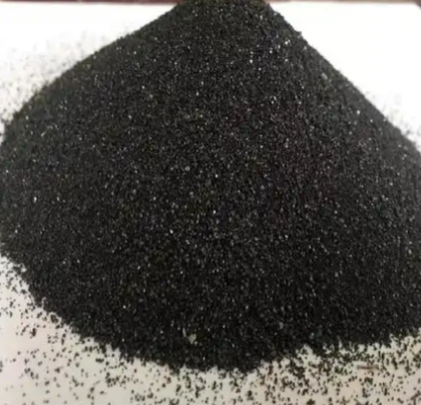

Foundry-grade chromite sand/flour (CMM)

Foundry-grade chromite sand/flour (CMM)

The main chemical component of foundry-grade chromite sand/flour is Cr2O3. It maintains a stable volume when heated at high temperatures and has a high thermal conductivity. When in contact with molten metal, it not only exhibits excellent resistance to alkaline slag but also does not react with iron oxides, thus avoiding thermochemical sand adhesion. The thermal conductivity of chromite sand is several times higher than that of silica sand, which can increase the cooling rate of castings. Its high refractoriness, low thermal expansion coefficient, and non-reactivity with metal oxides effectively prevent casting defects such as veining and sand inclusion, making it suitable for sand molding and core making in large steel castings. Chromite ore powder is suitable as a refractory material for the coating of high manganese steel and wear-resistant steel castings.

0.00
0.00


The main chemical component of foundry-grade chromite sand/flour is Cr2O3. It maintains a stable volume when heated at high temperatures and has a high thermal conductivity. When in contact with molten metal, it not only exhibits excellent resistance to alkaline slag but also does not react with iron oxides, thus avoiding thermochemical sand adhesion. The thermal conductivity of chromite sand is several times higher than that of silica sand, which can increase the cooling rate of castings. Its high refractoriness, low thermal expansion coefficient, and non-reactivity with metal oxides effectively prevent casting defects such as veining and sand inclusion, making it suitable for sand molding and core making in large steel castings. Chromite ore powder is suitable as a refractory material for the coating of high manganese steel and wear-resistant steel castings.

Item No.: Foundry-grade chromite sand/flour (CMM)




Chemical Specifications



项目 含量(%)
SiO2
1.30 max
ΣFe
30.00 max
MgO 10.0 max
CaO
0.50 max
AL203 16.0 min
Cr2O3 46 min
H2O 0.50 max



Particle Size



ItemContent
Sand 20-70 mesh/customed
Flour 200mesh, 325mesh



Packing Specification



25kg Net with three-layer paper bags.

2.0-ton polypropylene woven bag lined with polyethylene film/wooden pallet.
